Digital Fluke 787 Process Meter / Fluke Multimeter 789 4 - 20mA Current Source

Name: Digital Fluke 787 Process Meter Fluke Multimeter 789 4 20mA Current Source
Brand: Fluke
Price: 1 USD

Best Digital Fluke 787 Process Meter / Fluke Multimeter 789 4 - 20mA Current Source wholesale

Brand Name : Fluke

Model Number : FLUKE787 FLUKE789

Certification : CE

Place of Origin : USA

MOQ : 1 PCS

Price : consult for best discount

Payment Terms : T/T, , Western Union,Paypal,, MoneyGram,, L/C

Supply Ability : 500 Pcs/month

Delivery Time : 2-7 days

Packaging Details : Fluke original package

Type : ProcessMeter

Usage : Process Testing Machine

Power : Electronic

current sourcing : 0-20 mA or 4-20 mA

Voltage measurement : to 1000V

Condition : New and Original

Contact Now

Fluke 787 789 Digital Clamp Meter Multimeter Digital Meter Calibrator with 4-20mA Current Source

Overview

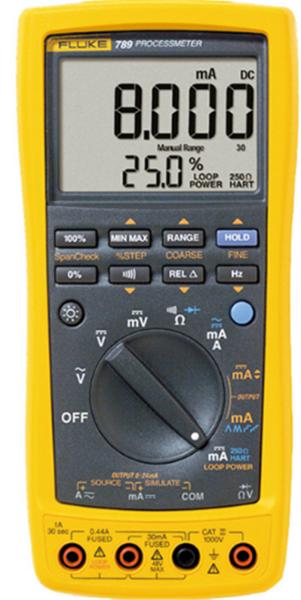

Fluke 789 ProcessMeter doubles your troubleshooting power and is Fluke Connect-enabled

The Fluke 789 ProcessMeter is the ultimate troubleshooting tool for electricians and instrumentation professionals. It combines the functionality of a loop calibrator with the power of a digital multimeter, and the wireless capabilities of Fluke Connect connectivity with optional IR3000FC module. The 789 has a display that's not only twice as large as the Fluke 787, but also twice as bright with two levels of backlighting. And its built-in, selectable 250 ohm HART® resistor eliminates the need to carry a separate resistor.

The 789 also has a 24-Volt loop supply, which reduces the need to carry a separate power supply when doing offline transmitter testing. You can add an optional temperature measurement module and the wireless data logging capabilities of the Fluke Connect™ mobile app to log data wirelessly to your smart phone and review it from a remote location. So now process technicians can do a lot more while carrying a lot less.

Other useful features:

Includes 0% and 100% buttons to toggle between 4 and 20 mA sourcing for a quick span check
Provides all standard DMM capabilities including frequency measurement to 20 kHz, Min/Max/Average/Hold/Relative modes, and diode test and continuity beeper
Simultaneous displays mA and % of scale readings
Provides 20 mA DC current source/loop calibrator/simulator
Offers manual step (100%, 25%, Coarse, Fine) plus auto step and auto ramp
Delivers 0.1% dc voltage accuracy and 0.05% dc current accuracy
Provides 1200 ohm drive capability on mA source
Offers HART mode setting with loop power and a built-in 250 ohm resistor
Offers externally accessible fuses and batteries for easy replacement

Specification Of Fluke 789 Process Meter

Specifications
Current measurement	Range	0-1 A AC or DC
	Resolution	1 mA
	Accuracy	0.2% + 2 LSD (DC)
	Range	0-30 mA
	Resolution	0.001 mA
	Accuracy	0.05% + 2 lSD
Current sourcing	Range	0-20 mA or 4-20 mA
	Resolution	0.05% of span
	Drive capability	24 V Compliance or 1200 Ω @ 20 mA
Frequency	to 19.999 kHz, 0.005% + 1 LSD
Continuity	Beeps for resistance < 100 Ω
Voltage measurement	Range	0-1000 V AC (true-rms) or DC
	Resolution	0.1 mV to 1.0 V
	Accuracy	0.1% Rdg + 1 LSD (VDC)
Resistance measurement	to 40 MΩ, 0.2% + 1 LSD
Diode test	2.0 V shoes diode voltage drop
Display current and % of span	Yes
Auto Step, Auto Ramp	Yes
Environmental Specifications
Operating temperature	-20°C to 55°C
Storage temperature	-40°C to 60°C
Humidity (without condensation)	95% up to 30°C 75% up to 40°C 45% up to 50°C 35% up to 55°C
Temperature coefficient	0.05 x (specified accuracy) per °C (for temperatures < 18°C or > 28°C)
Safety Specifications
Electrical safety	Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No 1010.1-92
Overvoltage category	IEC 1010-1 CAT III 1000 V IEC 1010-1 CAT IV 600 V
Maximum voltage	1000 V RMS
Mechanical and General Specifications
Size (H x W x L)	50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in)
Weight	610 g (1.6 lbs)
Batteries	4 AA alkaline batteries
Warranty	3 years
Battery life	140 hours typical (measurement), 10 hours typical (sourcing 20 mA)
Shock and vibration	Random, 2 g, 5-500 Hz 1 meter drop test
